Kit Flexbox stand alone
Availability:
In stock
SKU
FLX01.002

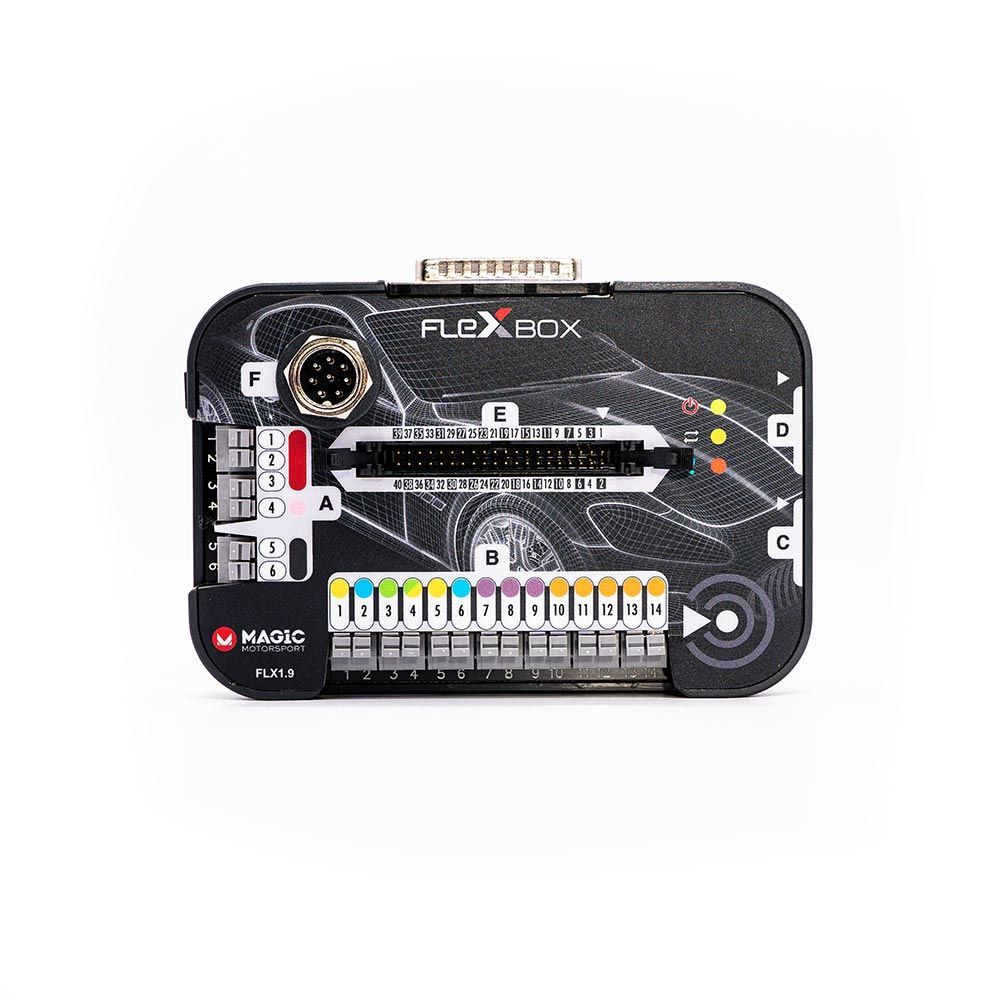

Flexbox is a device created by Magicmotorsport that acts as a channel between any electronic control unit and a diagnostic tool or programmer.
Main features:
- Easy ECU and TCU connection

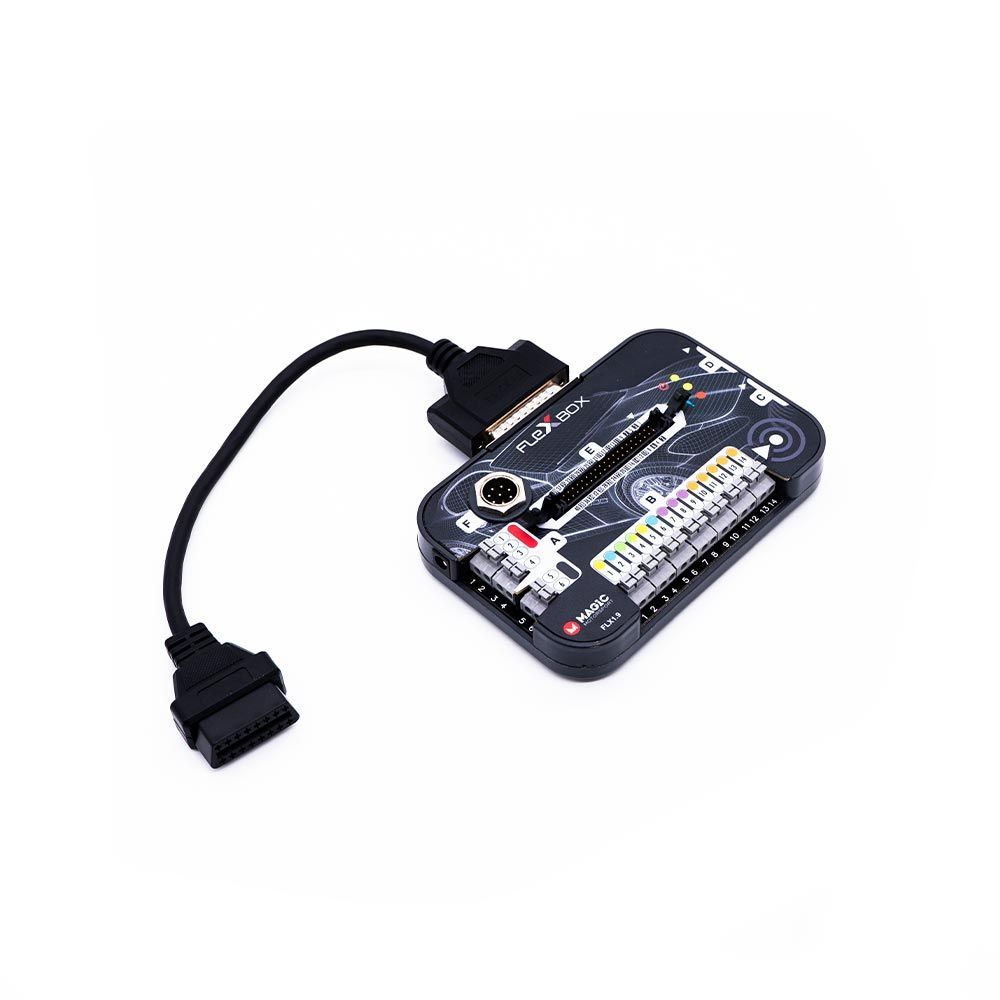

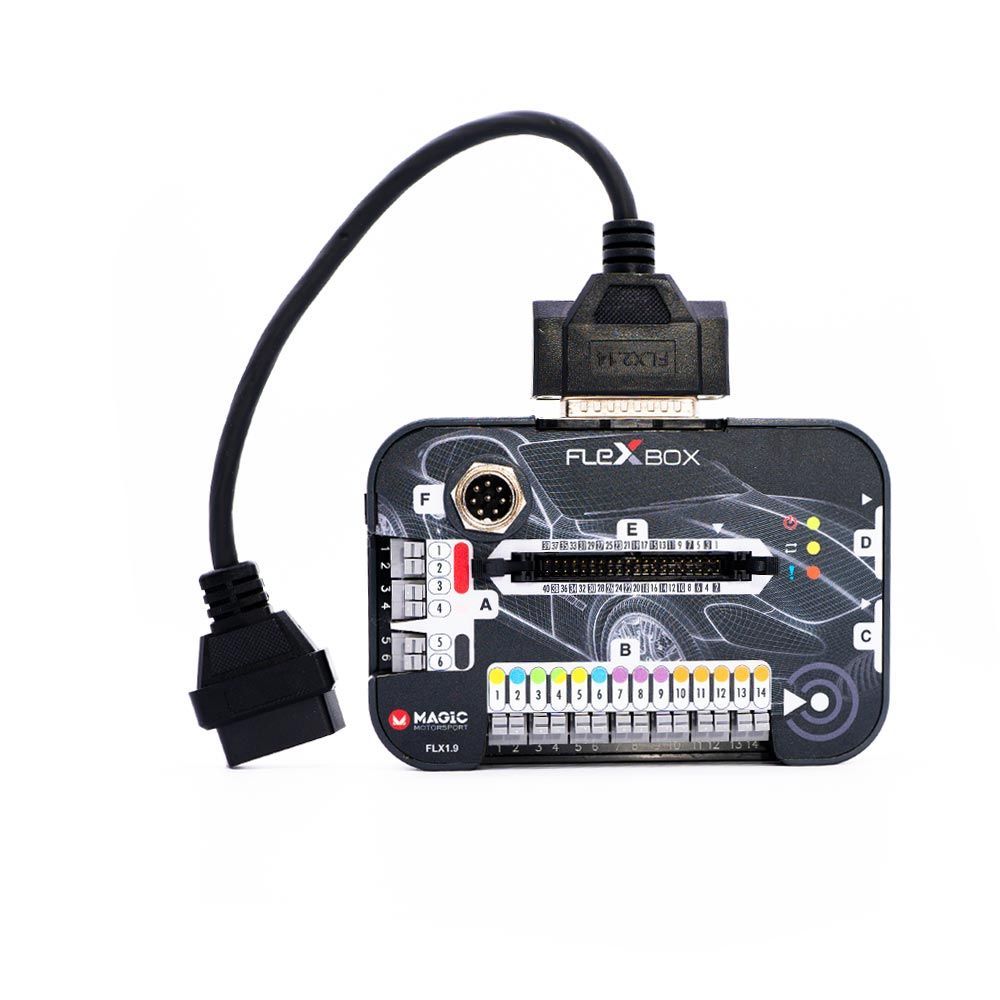

- Female OBD cable
- Touch control buttons
- 4 connection modes
$719.00
Description
Flexbox Kit by Magicmotorsport is the new set for ECU and TCU programming and diagnostics. It includes the Flexbox unit and the female OBD cable that allows you to connect directly to control units using any programming tool. With its touch buttons, it is possible to choose among four modes for Bench programming or diagnostics.
Several voltage values can be generated when connecting to the electronic unit. Moreover, power and ignition signals can be managed directly from the Flexbox.
You can easily connect to ECUs and TCUs thanks to the dedicated cables, specifically via the B port for ECUs and the F port for TCUs.
You can use the Flexbox kit with any programming tool, not only Flex.

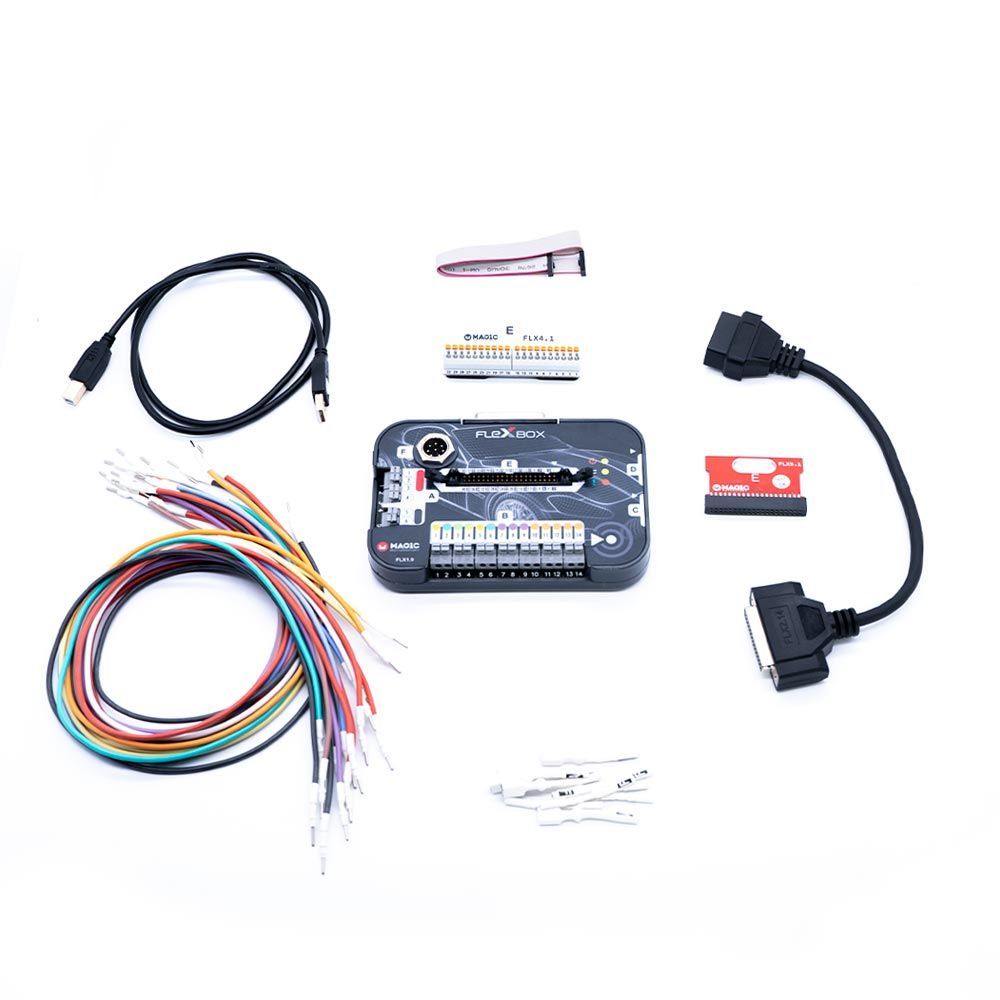

This kit, in addition to the Flexbox and the female OBD cable, also includes silicone connection cables, pin adapter set, 40 pins E port adapter, diagnostic adapter for E port.
Visit the Download section, consult the User Manual and read how to use the FLX2.14 cable to connect to the Flexbox. Discover all the possibilities in detail
How It Works
How to use
Package Content
| SKU Code | Description | Quantuty |
| FLX1.9 | Flexbox unit | 1 |
| FLX2.14 | OBD female cable | |
| FLK42 |
Adapter kit: 6 pcs set of pin adapters to FLX35
|
1 |
| FLK35 |
Cabling kit: FLX3.5 color coded wiring harness
|
1 |
| FLX3.3 |
Connection cable: FlexBox port C to NEC 7F00 XX
|
1 |
| FLX3.9 |
Connection cable: USB 2.0 AM-BM BLK 1.8m
|
1 |
| FLX4.1 |
FlexBox port E 40 pin adapter for FLK35
|
1 |
| FLX8.10 |
FLEX Branded Box
|
1 |
| FLX9.1 |
FLEX & FlexBox diagnostic adapter
|
1 |
